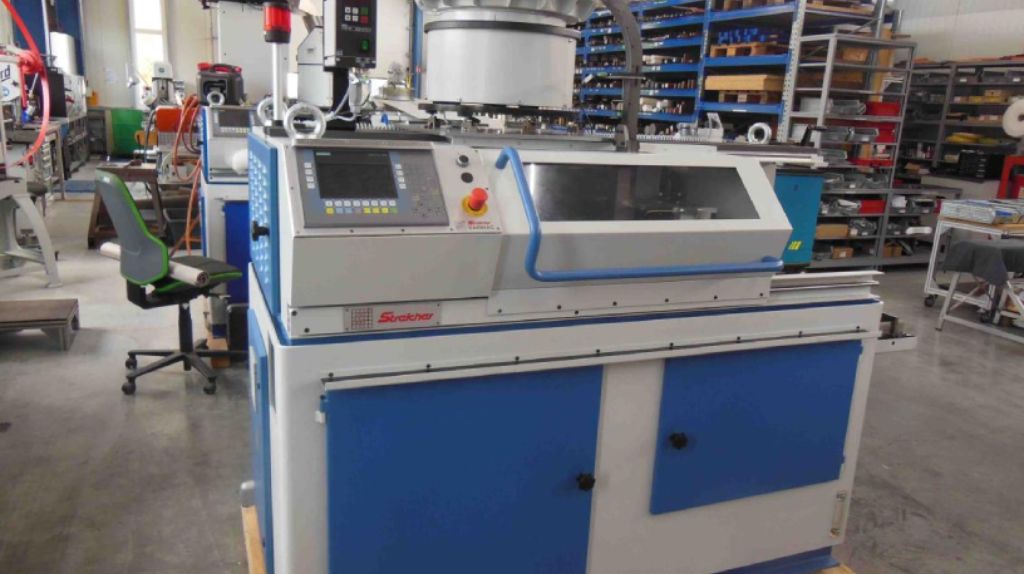

Streicher Varimac

Varimac 10/20

Automatic Reversing Single Spindle Tapping Machine

OUR MOST VERSATILE MASCHINE

Specification	Varimac 10	Varimac 20	Varimac 30
Thread dimension	M4 – M12 / 1/8″ – 1/2″	M6 – M20 / 1/4″ – 3/4″	M16 – M33 / 5/8″ – 1 3/4″
Spindle Count	1	1	1
Max. outside diameter	25 mm	50 mm	80 mm
Max. length	70 mm	70 mm	100 mm
Spindle Motor	5.9 kW	6.9 kW	13.2 kW
Speed range	0 – 4000 rpm	0 – 2300 rpm	0 – 1400 rpm
Machine Control System	PLC	PLC	PLC
Max. output	3600 pcs/h	2700 pcs/h	1200 pcs/h
Coolant volume	150 l	150 l	180 l
Weight	1900/2280 kg	1900/2280 kg	3200/4000 kg
Dimensions (L×W×H) mm	2100×980×1900	2100×980×1900	2700×1165×2050

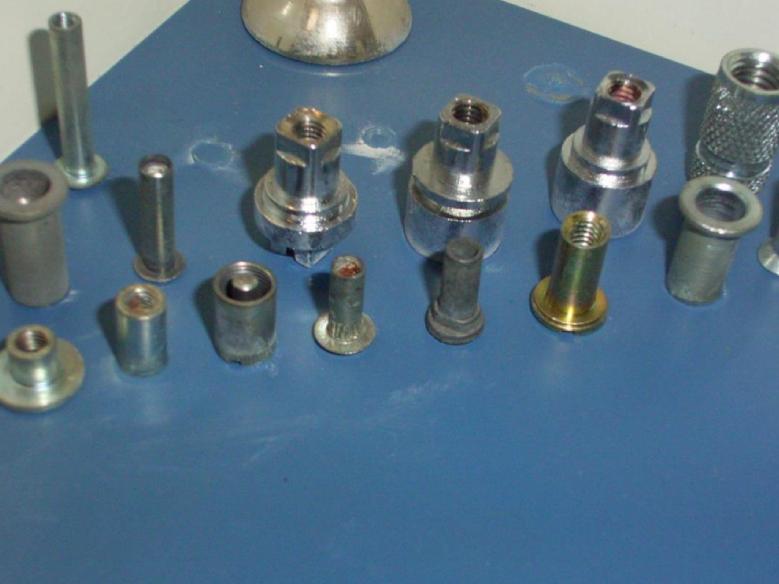

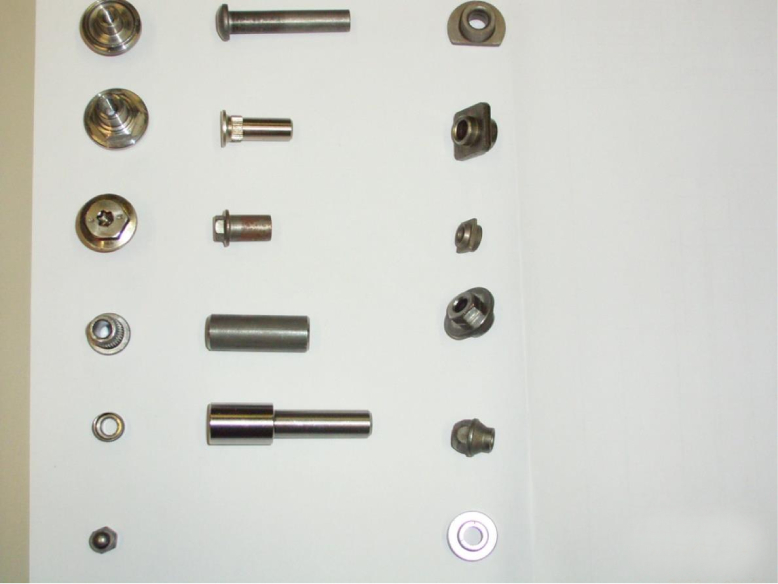

Capability

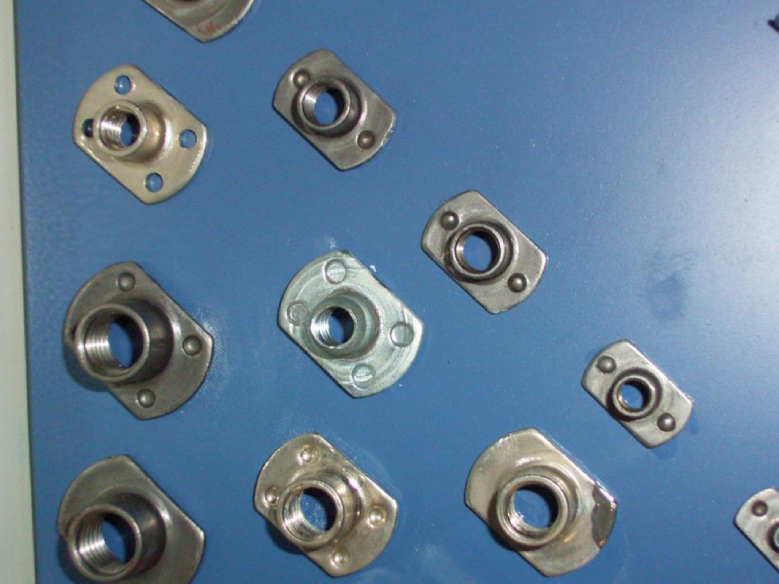

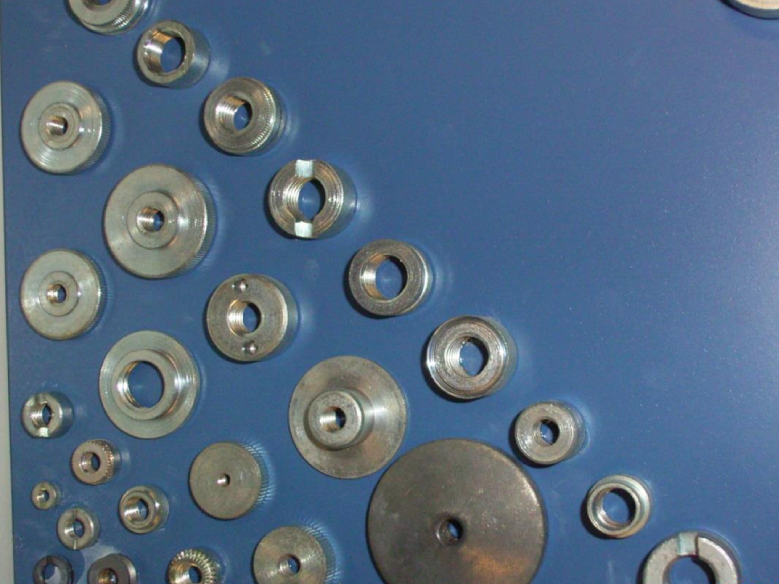

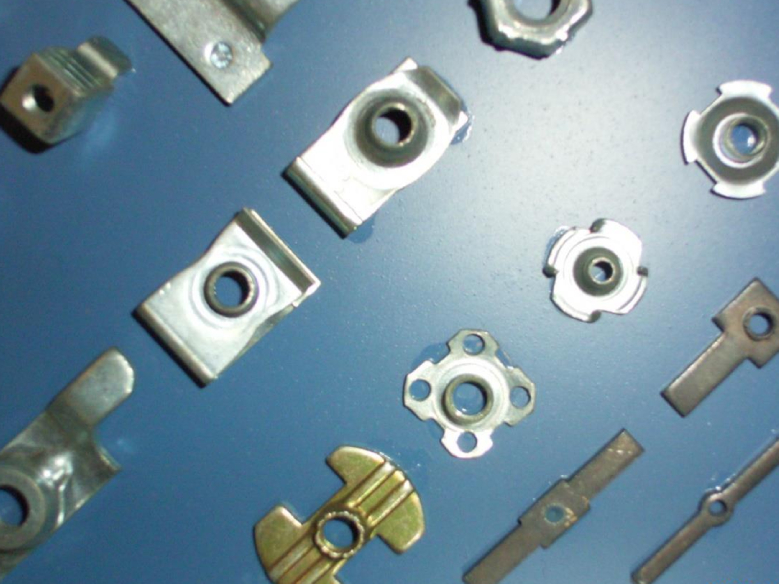

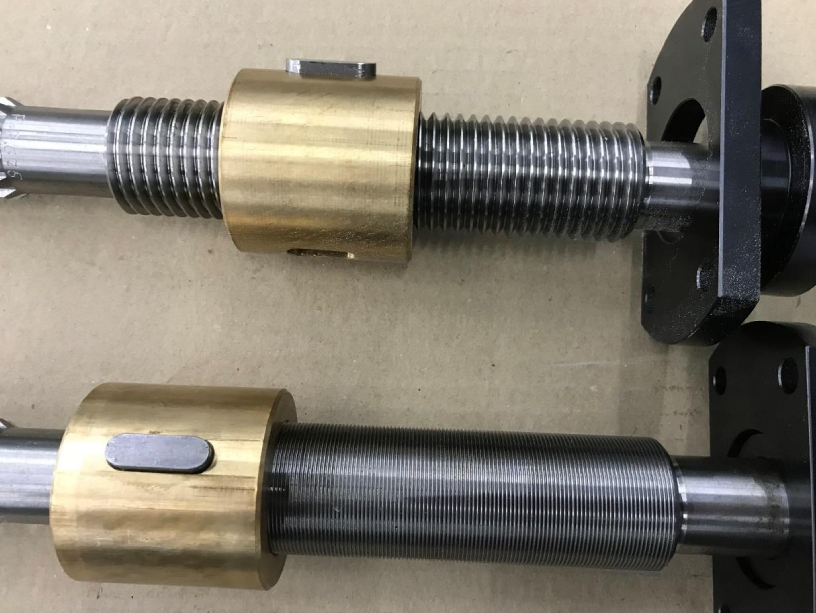

Nut tapping up to M20 (VA20), M12 (VA10)

Through Holes
Blind Holes
BSW & NPT pipe Threads
Special thread pitches

Parts can be up to 70mm long and up to diameter 50mm (VA20), 25mm (VA10)

Adaptation to accept parts up to 90mm may be possible

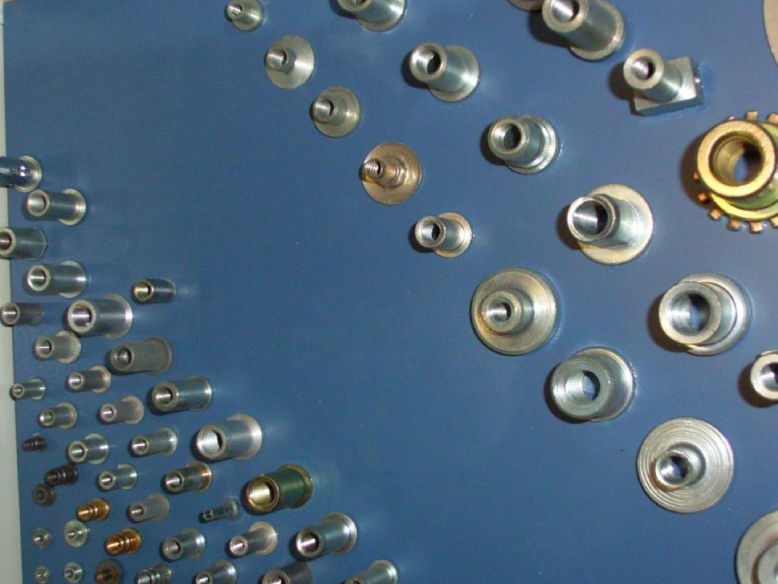

Materials

Steel
Stainless Steel
Brass
Aluminium
Plastic

Cut and Rollform tapping

Drilling and Reaming

Feeding Systems

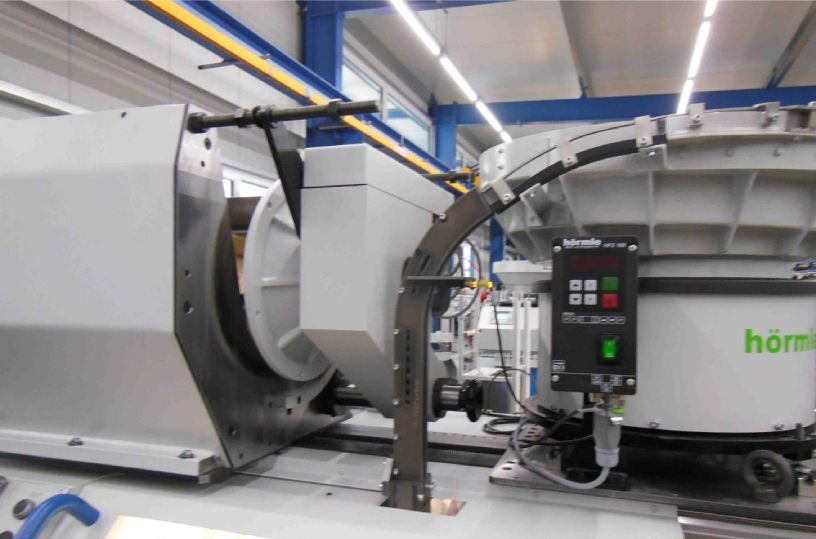

Vibratory Bowl
Rotary Drum
Both can be installed for companies with a large variety of products

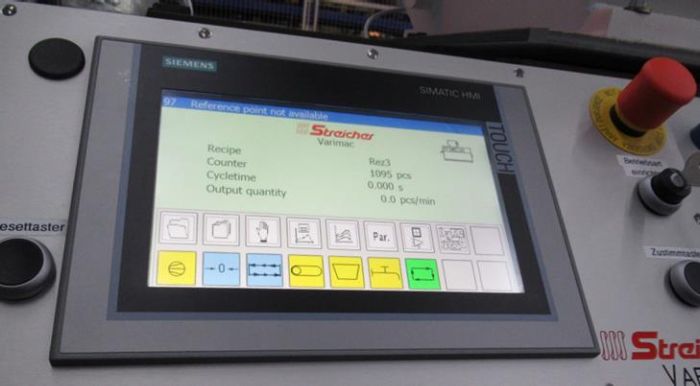

Machine Control

Varimac machines use a Siemens

HMI touch screen and PLC

TP900 Comfort HMI
S7-1500/ET200SP PLC

The HMI stores up to 100 different parameter sets for specific jobs

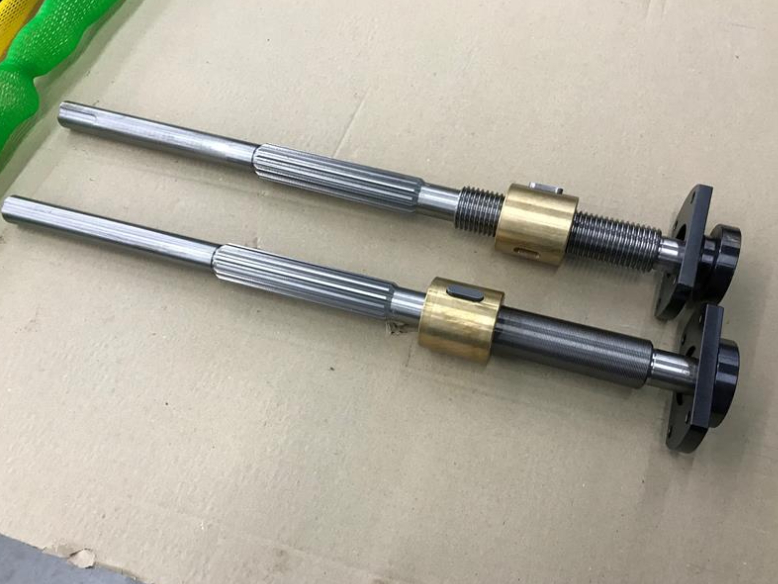

Advance motion can be customized with 14 different settings

Panel Compartments

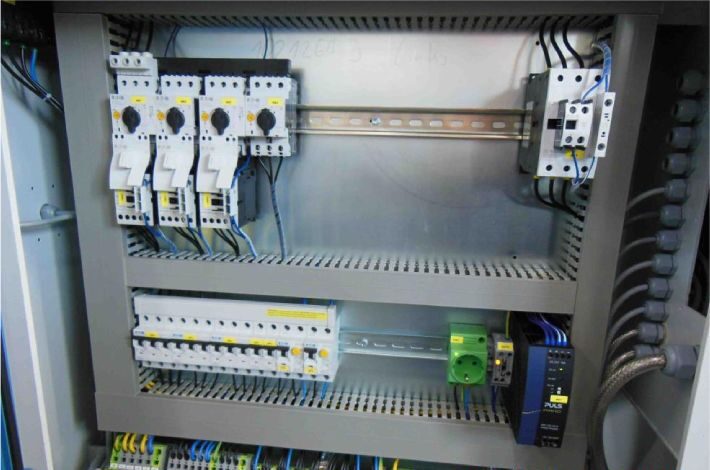

Left Side – Behind Machine

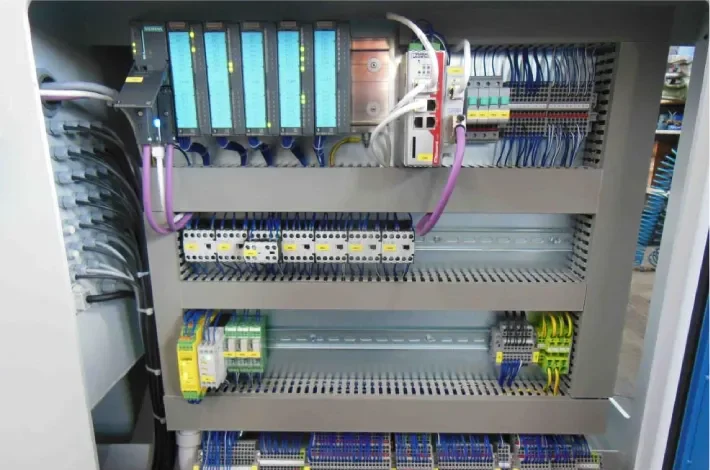

Right Side – Behind Machine

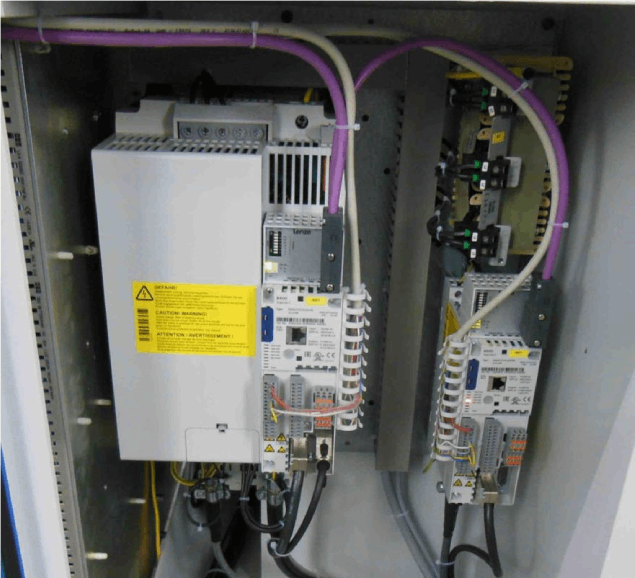

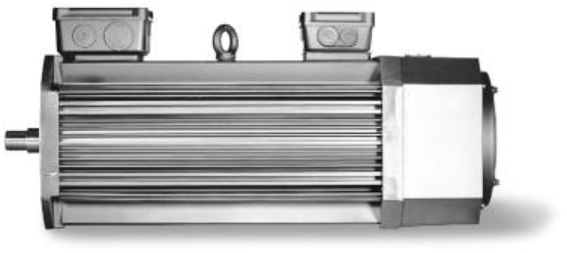

Servo-drive

Servo-drive Frequencey Controller – Accessible from side under spindle housing

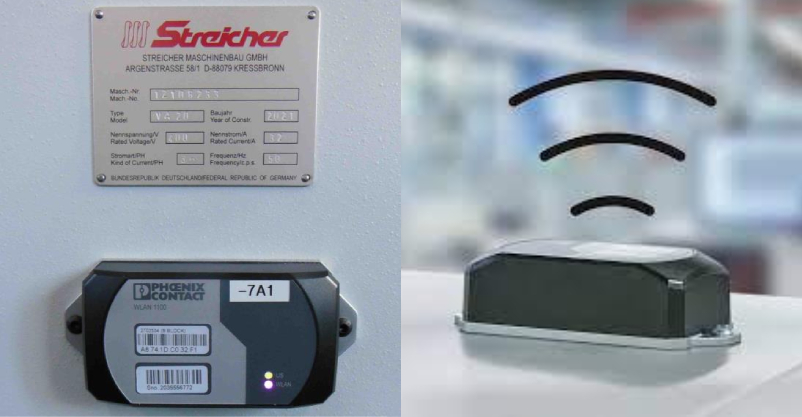

Connectivity

Network and Wifi Connection for integration with factory data systems and remote support

Chip Seperation

Magnetic Chip Seperator

A magnetic drum rotates during automatic operation bringing steel chips up where they can be easily removed.

Oil flows under the drum and returns to the tank.

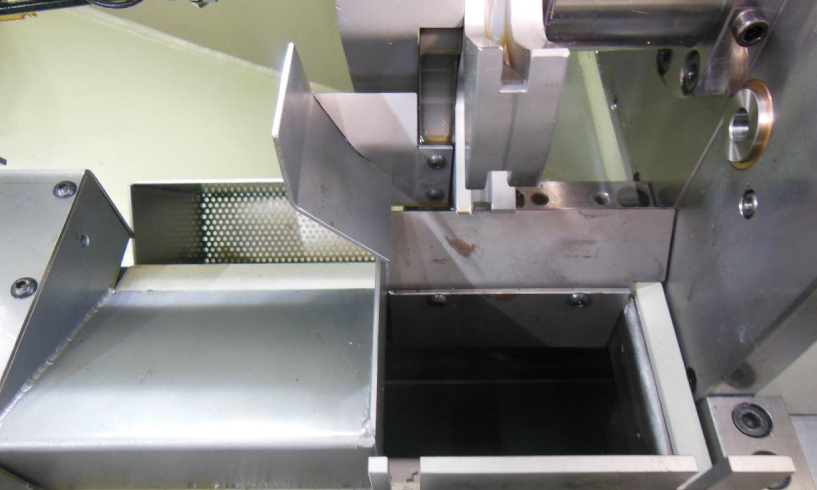

Basket for Non-Magnetic Materials

This perforated collection basket replaces the magnetic chip seperator when processing materials like stainless steel and aluminum.

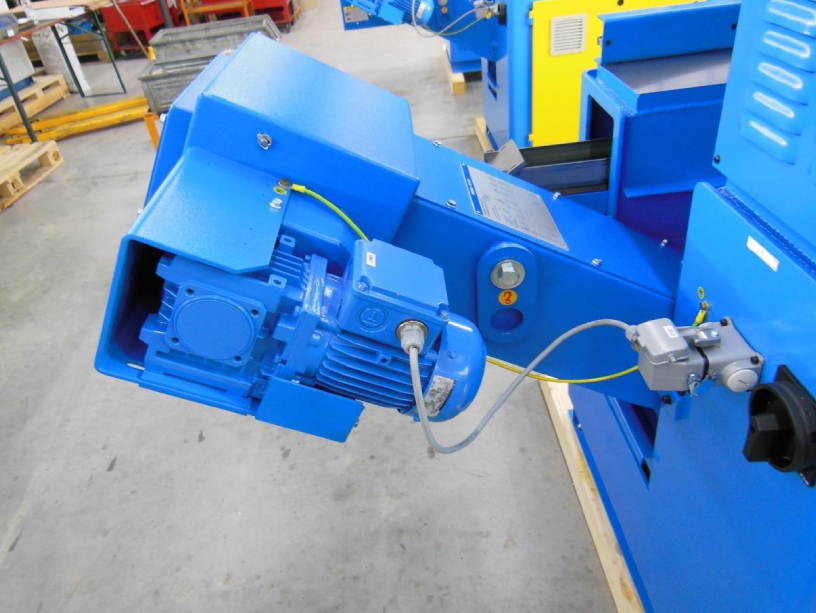

Automatic Chip Conveyor

Conveyor operates continuously during automatic operation for easy removal of all materials.

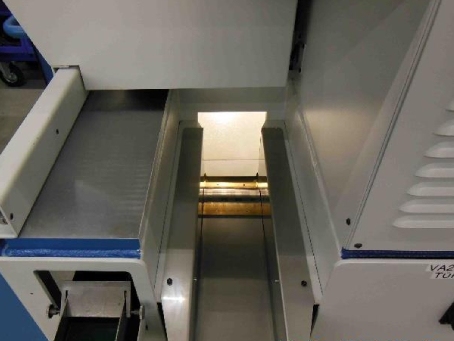

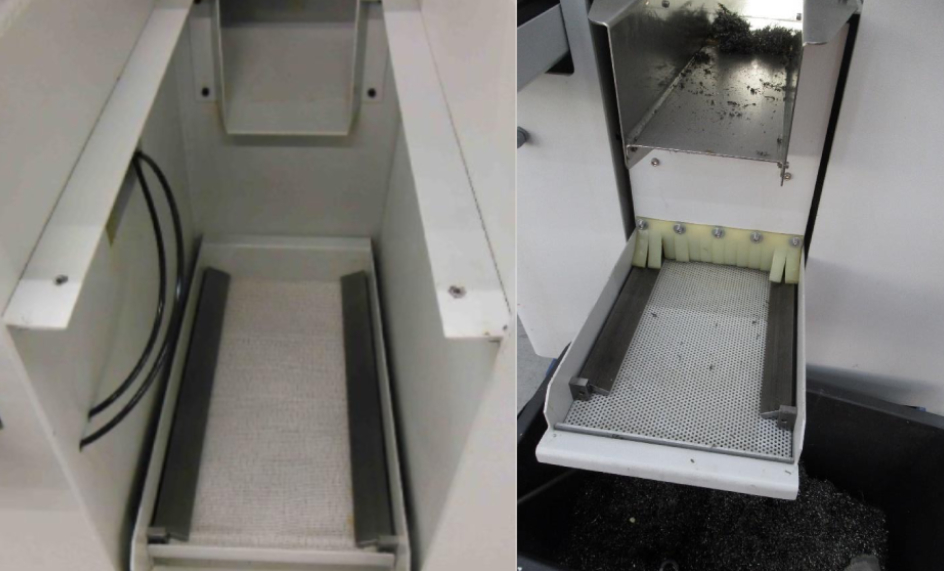

Filtration Drawer

Filtration fabric can be placed under the magnetic chip separator, basket or conveyor to help maintain clean tapping oil.

The drawer slides out so the filter medium can be changed easily.

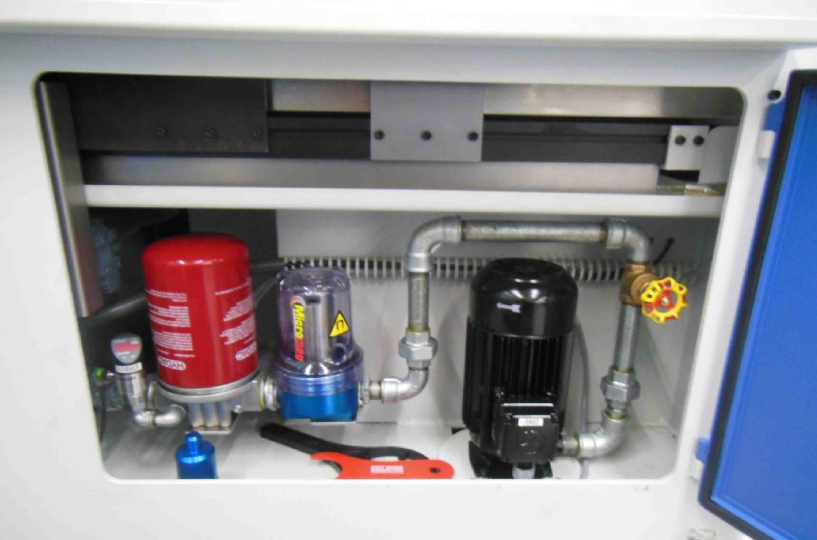

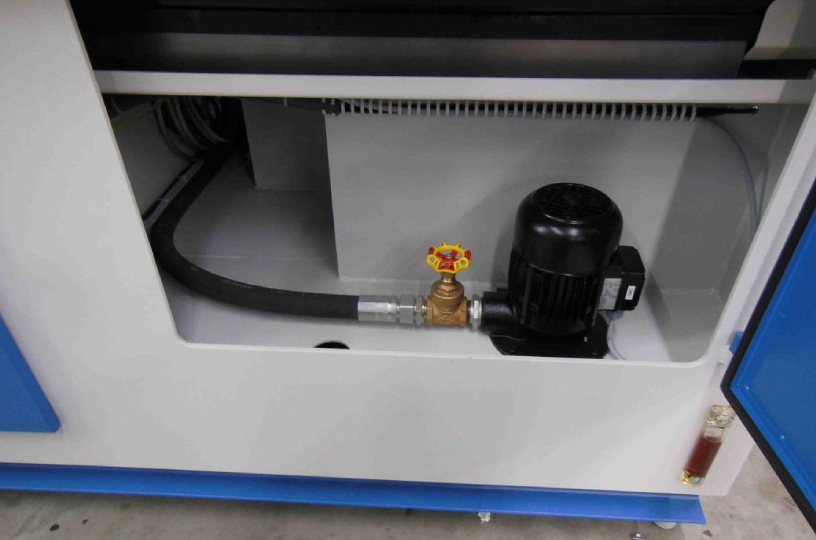

Oil Tank

Tank Capacity is 150 liters.

Oil level is visible from the outside through the sight glass.

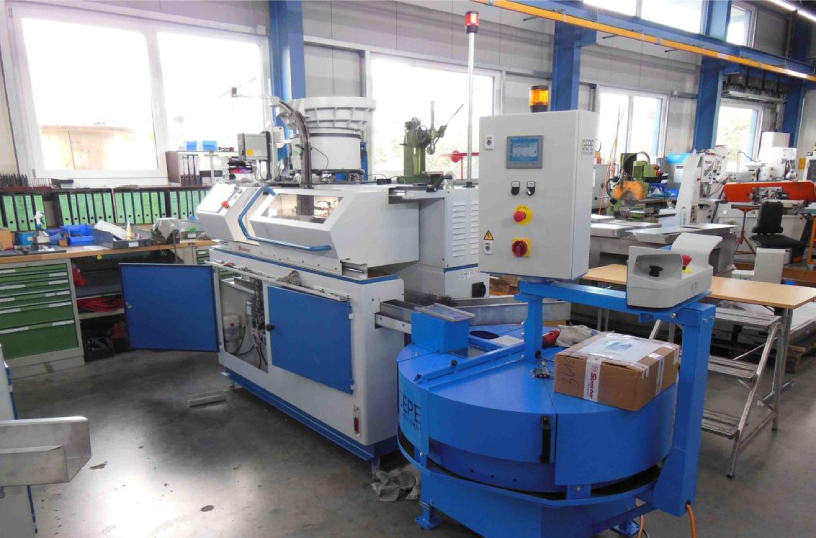

Customized for External Equipment

Varimac machines can be customized to work with other equipment such as overhead feeding systems and carousel collection boxes.

These options will be discussed on an individual basis.

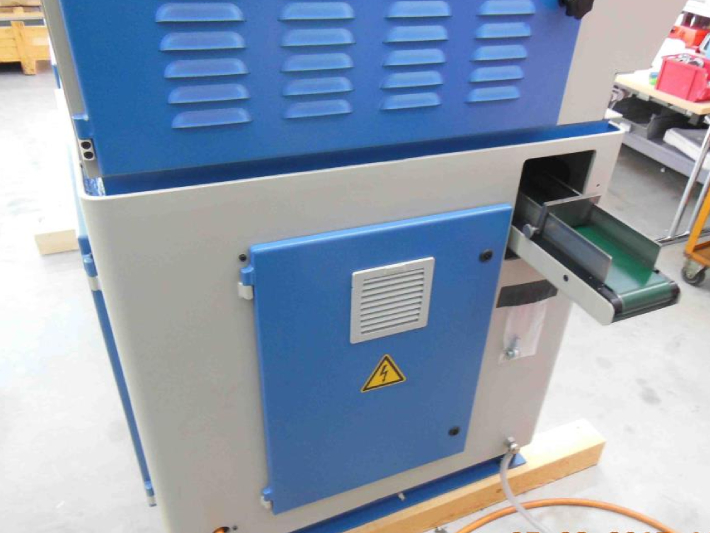

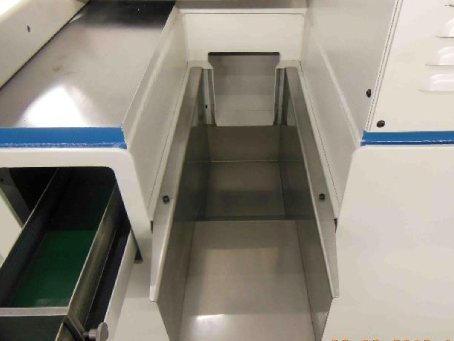

Finished Parts Conveyor

OUTPUT LEFT

OUTPUT RIGHT

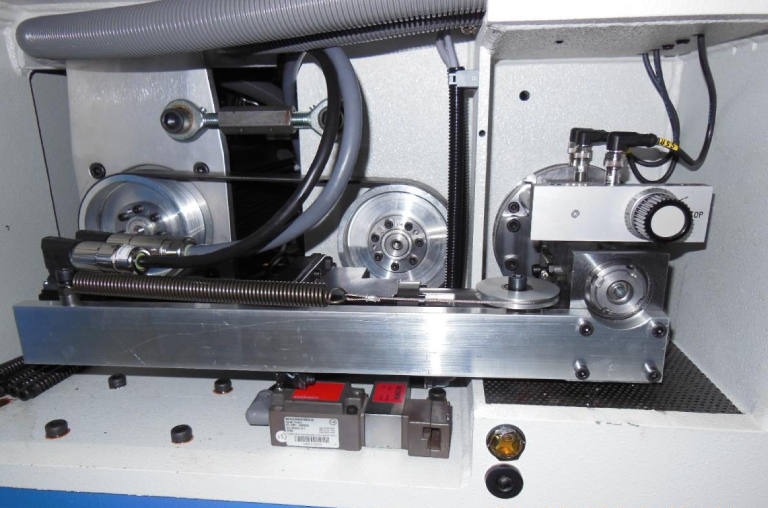

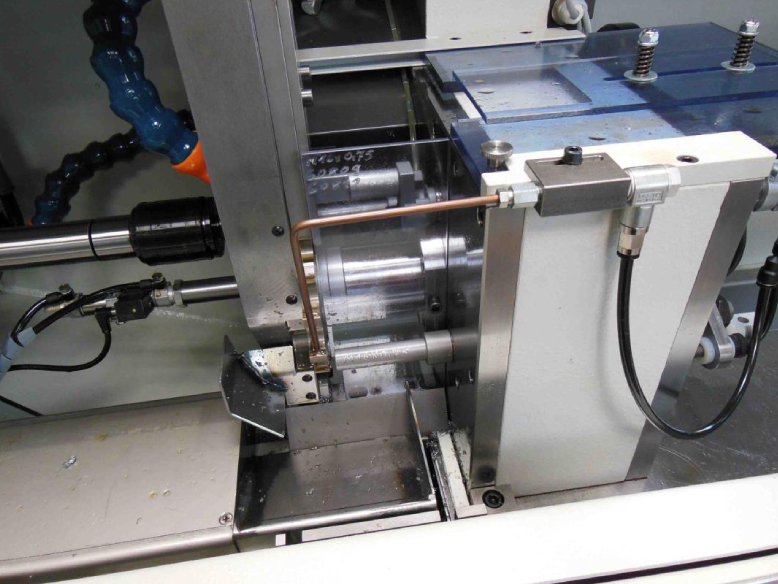

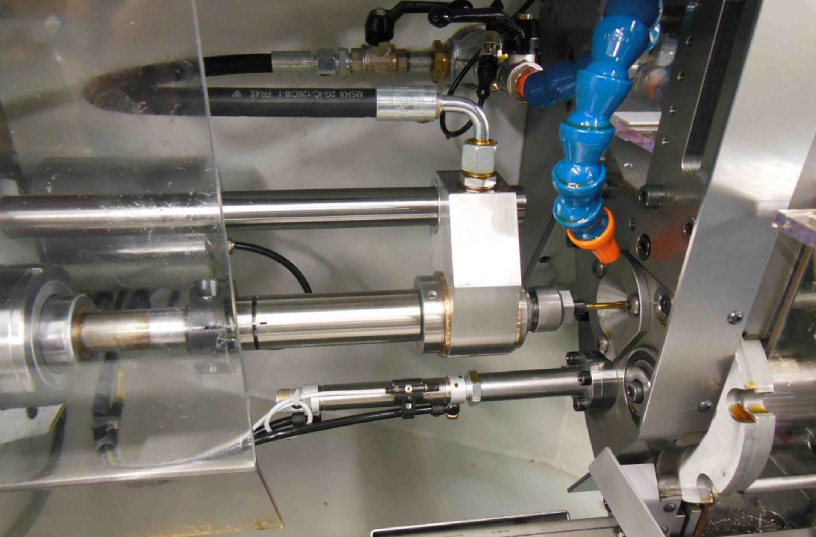

Working Area – Standard Spindle

The standard spindle comes equiped with a Bilz style quick release tap holder.

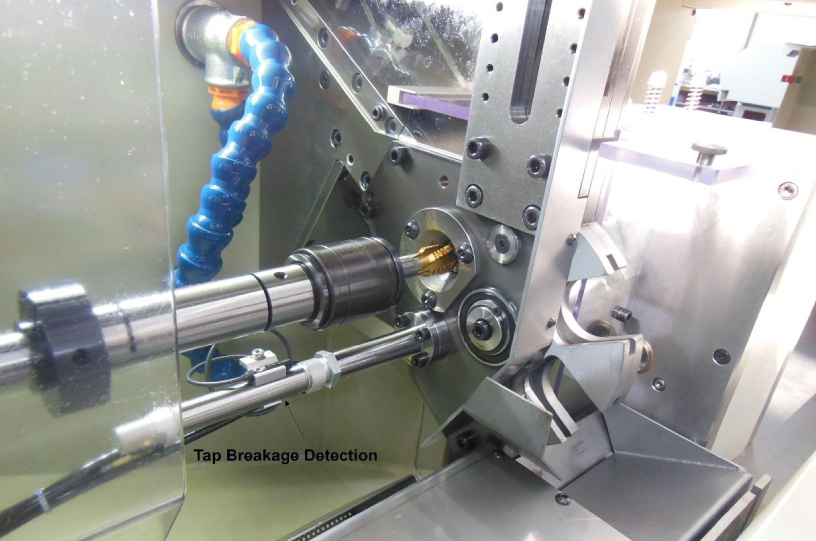

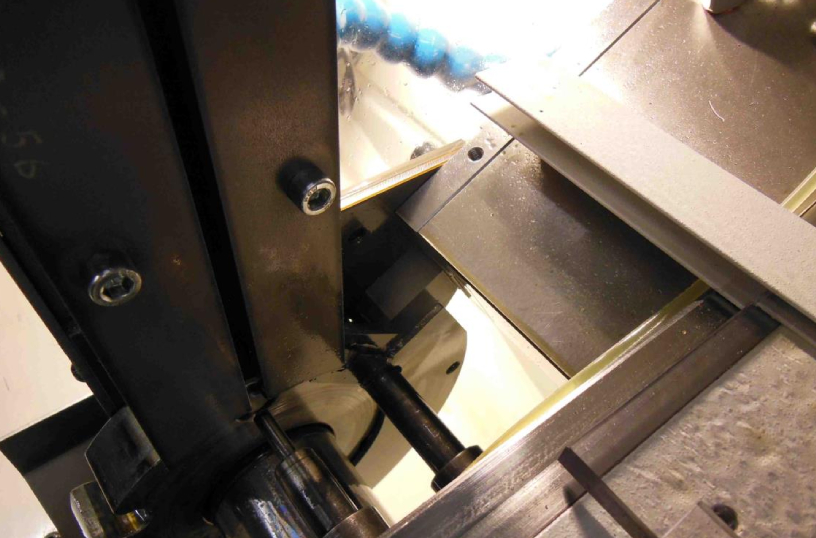

All Varimacs for nut tapping are fitted with a tap breakage detection mechanism.

During each cycle a pin is projected into the tapped hole. When the pin is not able to go as far as it should, the control knows the tap broke and is stuck in the hole.
